產品展示 >> 電動機保護 >> XRNM-3KV/7.2KV |
|
 |

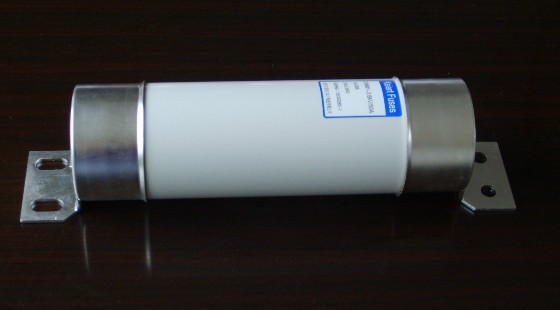

Ratings 等級: Volts 電壓: 3.6/7.2KV AC ; Amps 電流 50~450A .Breaking Capacity 分斷能力: 50kA - 63kA.
產品可與負荷開關、真空接觸器等配套使用，廣泛應用于電力變壓器及其它電力設備的過載或短路保護。 |
| 技術參數(shù) |
| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| A=254 mm |
AC 3.6 kV |
后備保護Back up |
BS2692-1、IEC60282-1 |
|
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
L(mm) |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
功耗
Power Loss |
熔斷I2t @3.6KV
(A2S) |
| XRNM-3.6 |
50A |
30 269 56.50 |
WFKHO-3.6 |
337 |
305 |
50KA |
23W |
16000 |
| XRNM-3.6 |
63A |
30 269 56.63 |
WFKHO-3.6 |
337 |
305 |
50KA |
31W |
25000 |
| XRNM-3.6 |
80A |
30 269 56.80 |
WFKHO-3.6 |
337 |
305 |
50KA |
36W |
29000 |
| XRNM-3.6 |
100A |
30 269 56.100 |
WFKHO-3.6 |
337 |
305 |
50KA |
39W |
65000 |
| XRNM-3.6 |
125A |
30 269 56.125 |
WFKHO-3.6 |
337 |
305 |
50KA |
44W |
115000 |
| XRNM-3.6 |
160A |
30 269 56.160 |
WFKHO-3.6 |
337 |
305 |
50KA |
46W |
295000 |
| XRNM-3.6 |
200A |
30 269 56.200 |
WFKHO-3.6 |
337 |
305 |
50KA |
54W |
559000 |
| XRNM-3.6 |
224A |
30 269 56.224 |
WFKHO-3.6 |
337 |
305 |
50KA |
57W |
665000 |
| XRNM-3.6 |
250A |
30 269 56.250 |
WFKHO-3.6 |
337 |
305 |
50KA |
61W |
1414000 |
| XRNM-3.6 |
315A* |
30 269 56.315 |
WFKHO-3.6 |
337 |
305 |
50KA |
70W |
2828000 |
|
| * 為雙并連接。 |
| |
| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| E=403 mm |
AC 7.2 kV |
后備保護Back up |
BS2692-1、IEC60282-1 |
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
L(mm) |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
功耗
Power Loss |
熔斷I2t @3.6KV
(A2S) |
| XRNM-7.2 |
50A |
30 271 56.50 |
WKLDJ-7.2 |
486 |
454 |
50KA |
34W |
20000 |
| XRNM-7.2 |
63A |
30 271 56.63 |
WKLDJ-7.2 |
486 |
454 |
50KA |
47W |
31000 |
| XRNM-7.2 |
80A |
30 271 56.80 |
WKLDJ-7.2 |
486 |
454 |
50KA |
56W |
36000 |
| XRNM-7.2 |
100A |
30 271 56.100 |
WKLDJ-7.2 |
486 |
454 |
50KA |
60W |
80000 |
| XRNM-7.2 |
125A |
30 271 56.125 |
WKLDJ-7.2 |
486 |
454 |
50KA |
68W |
143500 |
| XRNM-7.2 |
160A |
30 271 56.160 |
WKLDJ-7.2 |
486 |
454 |
50KA |
71W |
366000 |
| XRNM-7.2 |
200A |
30 271 56.200 |
WKLDJ-7.2 |
486 |
454 |
50KA |
83W |
690000 |
| XRNM-7.2 |
224A |
30 271 56.224 |
WKLDJ-7.2 |
486 |
454 |
50KA |
88W |
824000 |
| XRNM-7.2 |
250A |
30 271 56.250 |
WKLDJ-7.2 |
486 |
454 |
50KA |
92W |
1750000 |
| XRNTM-7.2 |
315A |
30 272 56.315 |
WKLDJ-7.2 |
486 |
454 |
50KA |
107W |
3504000 |
| XRNTM-7.2 |
355A* |
30 272 56.355 |
WKLDJ-7.2 |
486 |
454 |
50KA |
120W |
4326000 |
| XRNTM-7.2 |
400A* |
30 272 56.400 |
WKLDJ-7.2 |
486 |
454 |
50KA |
135W |
6400000 |
| XRNTM-7.2 |
450A* |
30 272 56.450 |
WKNHO-7.2 |
486 |
454 |
50KA |
150W |
7007000 |
| XRNTM-3.6 |
355A* |
30 270 56.355 |
WFKHO-3.6 |
486 |
454 |
50KA |
89W |
3365000 |
| XRNTM-3.6 |
400A* |
30 270 56.400 |
WFKHO-3.6 |
486 |
454 |
50KA |
100W |
4876000 |
| XRNTM-3.6 |
450A* |
30 270 56.450 |
WFKHO-3.6 |
486 |
454 |
50KA |
112W |
5655000 |
|
| * 為雙并連接。 |

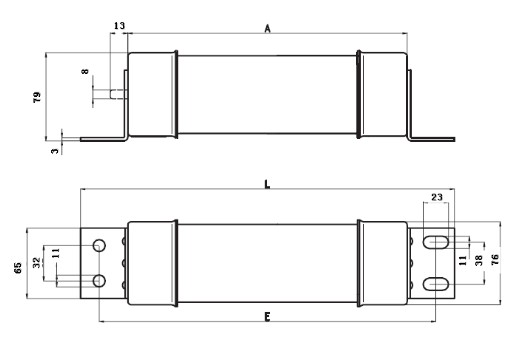

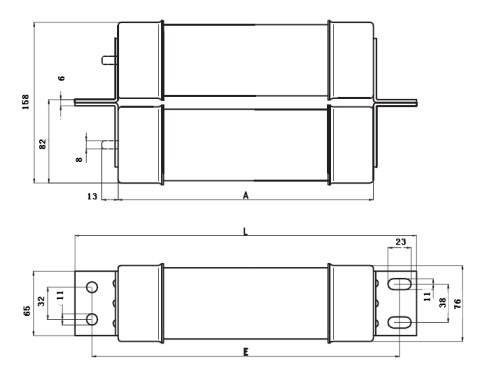

Dimensions 安裝尺寸 (mm): |
 |
| |

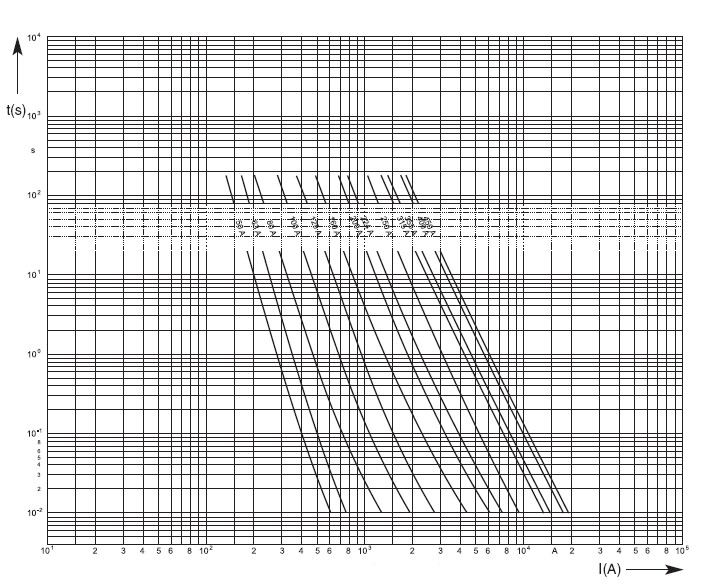

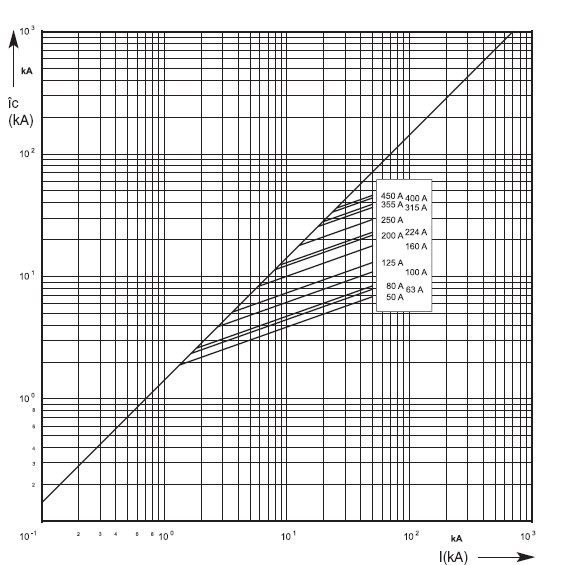

Time Current Characteristics 時間---電流特性曲線: |
 |
|
|
